Immune Cell Type Composition

Loading Libraries and Data

library(tidyverse)
library(ggplot2)
library(forcats)
library(ggpubr)
library(here)


# Load results
cibersort <- readRDS(here("data", "cibersort_res_ulc_lf.rds"))

# Load combined data with ulceration status
ciber_with_groups <- readRDS(here("data", "cibersort_res_ulc.rds"))

# Gather - long format
ciber_gath <- ciber_with_groups %>%
  pivot_longer(
    cols = -c(sample_id, ulceration),
    names_to = "cell_type",
    values_to = "proportion"
  )

# Order by proportion
ciber_gath <- ciber_gath %>% mutate(cell_type = fct_reorder(cell_type, proportion))

sample_order <- ciber_gath %>%
  filter(cell_type == "Plasma_cells") %>%
  arrange(ulceration, proportion) %>%
  pull(sample_id)

ciber_ordered <- ciber_gath %>%
  mutate(sample_id = factor(sample_id, levels = sample_order))
# Color palette
immune_palette <- c(
  '#00441B', '#f29175', 'brown', '#B299A7', 'blue', 'lightblue', 'olivedrab', 'orange',
  '#3F007D', '#8DA0CB', '#CC0066', "#CB181D", '#74a9cf', 'pink', 'deeppink4', 'cadetblue1',
  '#241178', '#66C2A5', "#E78AC3", "#FFD92F", "#CA9E78", "#3F007D"
)

# Define colors and theme
ulceration_colors <- list(
  fill = c("0" = "#730769", "1" = "#E8CC03"),
  point = c("0" = "#4A044E", "1" = "#938202")
)

publication_theme <- theme_minimal() +
  theme(
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5, margin = margin(b = 20)),
    axis.title = element_text(size = 12, face = "bold"),
    axis.text = element_text(size = 10, color = "black"),
    legend.position = "top",
    legend.title = element_text(size = 10, face = "bold"),
    legend.text = element_text(size = 9),
    legend.margin = margin(t = 10, b = 10),
    panel.grid = element_blank(),
    plot.margin = margin(10, 20, 20, 10)
  )

Data Preparation

# Wide to long format
prepare_long_format <- function(data) {
  # Check if data contains required columns
  if("cell_type" %in% colnames(data) && "proportion" %in% colnames(data)) {
    return(data)
  }

  if("ulceration" %in% colnames(data)) {
    # Wide to long preserving ulceration
    data %>% pivot_longer(
      cols = -c(sample_id, ulceration),
      names_to = "cell_type",
      values_to = "proportion"
    )
  } else {
    # Transform wide to long without ulceration
    data %>% pivot_longer(
      cols = -sample_id,
      names_to = "cell_type",
      values_to = "proportion"
    )
  }
}


# Order samples by cell type proportion
order_samples <- function(data, order_by_cell = "Plasma_cells", group_by = NULL) {
  data_long <- prepare_long_format(data)
  # Filter for specified cell type
  cell_data <- data_long %>% filter(cell_type == order_by_cell)

  # Order samples
  if(!is.null(group_by) && group_by %in% colnames(data_long)) {
    #  within groups
    sample_order <- cell_data %>%
      arrange(!!sym(group_by), proportion) %>%
      pull(sample_id)
  } else {
    #  overall
    sample_order <- cell_data %>%
      arrange(proportion) %>%
      pull(sample_id)
  }

  data_long %>% mutate(sample_id = factor(sample_id, levels = sample_order))
}

# Prepare data for comparison of cell types
prepare_cell_data <- function(data, cell_column) {
  data %>%
    select(sample_id, !!sym(cell_column), ulceration) %>%
    gather(key = "cell_type", value = "proportion", -sample_id, -ulceration)
}

Plotting

# Grouped stacked barplot by ulceration
plot_grouped_barplot <- function(data, title = "Immune Cell Composition by Ulceration Status") {
  if(!("ulceration" %in% colnames(data))) {
    stop("Data must contain 'ulceration' column for grouped barplot")
  }

  ggplot(data, aes(x = sample_id, y = proportion, fill = cell_type)) +
    geom_col(position = "fill", width = 0.8) +
    scale_fill_manual(values = immune_palette) +
    scale_y_continuous(labels = scales::percent, breaks = seq(0, 1, 0.2)) +
    facet_grid(~ ulceration, scales = "free_x", space = "free_x",
               labeller = labeller(ulceration = c("0" = "Non-ulcerated", "1" = "Ulcerated"))) +
    labs(
      title = title,
      x = "Samples",
      y = "Estimated Cell Proportion (CIBERSORTx)",
      fill = "Immune Cell Type"
    ) +
    theme_minimal() +
    theme(
      plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
      plot.subtitle = element_text(size = 12, hjust = 0.5),
      axis.text.x = element_text(angle = 90, hjust = 1, size = 8),
      axis.text.y = element_text(size = 10),
      axis.title = element_text(size = 12, face = "bold"),
      legend.title = element_text(size = 10, face = "bold"),
      legend.text = element_text(size = 9),
      panel.grid.major.x = element_blank(),
      panel.grid.minor = element_blank(),
      strip.text = element_text(size = 12, face = "bold"),
      strip.background = element_rect(fill = "white"),
      panel.spacing = unit(1, "lines")
    )
}


# Boxplot
plot_cell_boxplot <- function(
  data,
  cell_name,
  y_max = NULL,
  y_increment = NULL
) {
  if(is.null(y_max)) {
    y_max <- ceiling(max(data$proportion) * 1.2 * 100) / 100
  }

  if(is.null(y_increment)) {
    y_increment <- y_max / 5
  }
  stat_pos <- y_max * 0.8

  ggplot(data, aes(x = cell_type, y = proportion, fill = ulceration)) +
    geom_boxplot(
      outlier.shape = NA,
      width = 0.5,
      alpha = 0.8
    ) +
    geom_point(
      aes(color = ulceration),
      size = 2,
      alpha = 0.6,
      position = position_jitterdodge(
        jitter.width = 0.15,
        dodge.width = 0.5,
        seed = 123
      )
    ) +
    scale_fill_manual(
      values = ulceration_colors$fill,
      name = "Ulceration Status",
      labels = c("0" = "Non-ulcerated", "1" = "Ulcerated")
    ) +
    scale_color_manual(
      values = ulceration_colors$point,
      guide = "none"
    ) +
    scale_y_continuous(
      limits = c(0, y_max),
      breaks = seq(0, y_max, by = y_increment),
      labels = scales::number_format(accuracy = 0.01),
      expand = expansion(mult = c(0.05, 0.1))
    ) +
    stat_compare_means(
      aes(group = ulceration),
      label.y = stat_pos,
      size = 4,
      label = "p.format",
      label.x.npc = "center"
    ) +
    labs(
      title = paste0(cell_name, " in Acral Melanoma"),
      y = "Cell Proportion (CIBERSORTx)",
      caption = "Statistical test: Wilcoxon rank-sum test"
    ) +
    publication_theme +
    theme(axis.text.x = element_text(angle = 0, hjust = 0.5))
}

Visualization

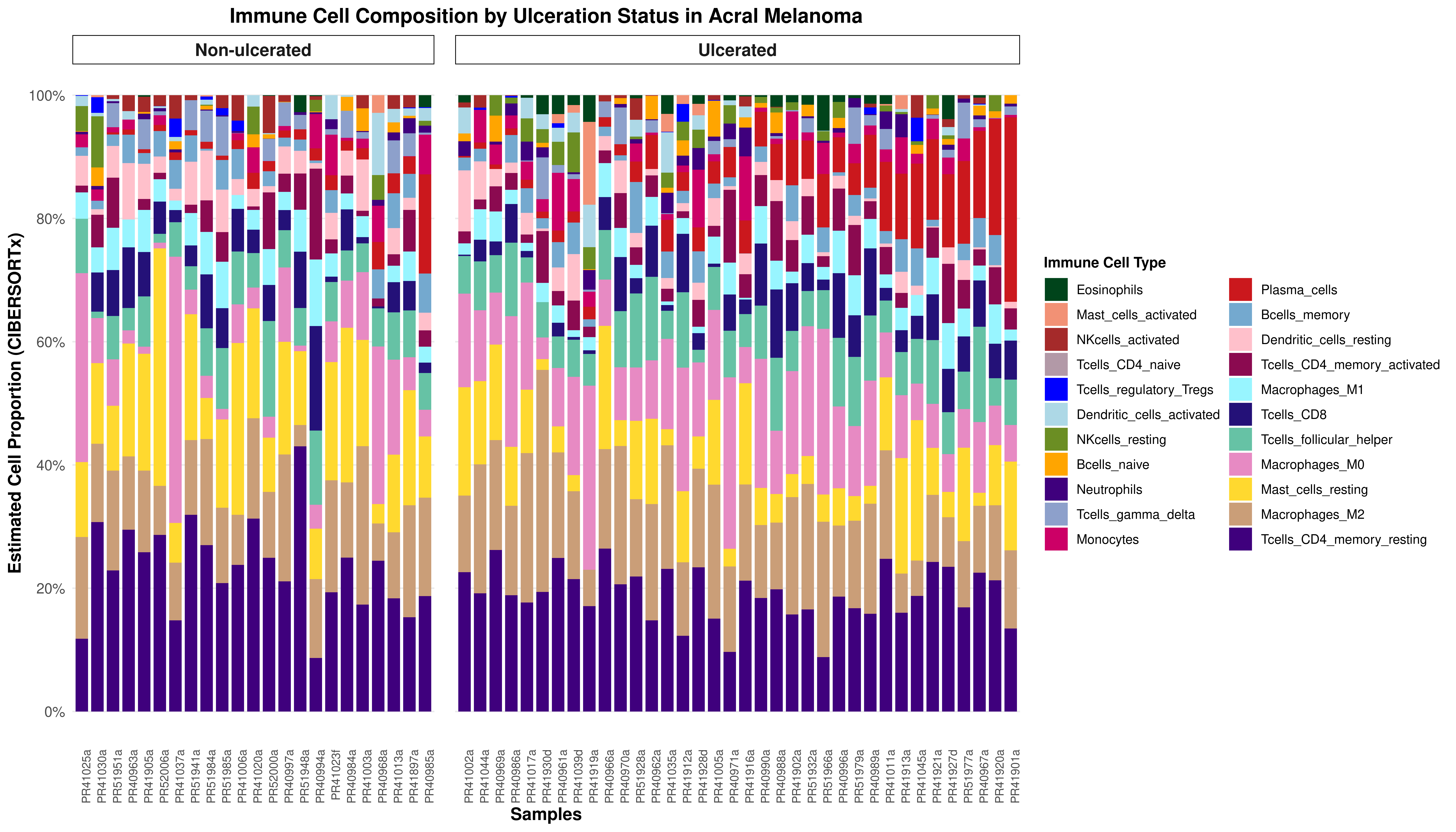

Immune Cell Composition by Ulceration Status

# Create grouped barplot
plot_grouped_barplot(
  ciber_ordered,
  title = "Immune Cell Composition by Ulceration Status in Acral Melanoma"
)

Version Author Date
60dfca2 Estef Vazquez 2025-05-05

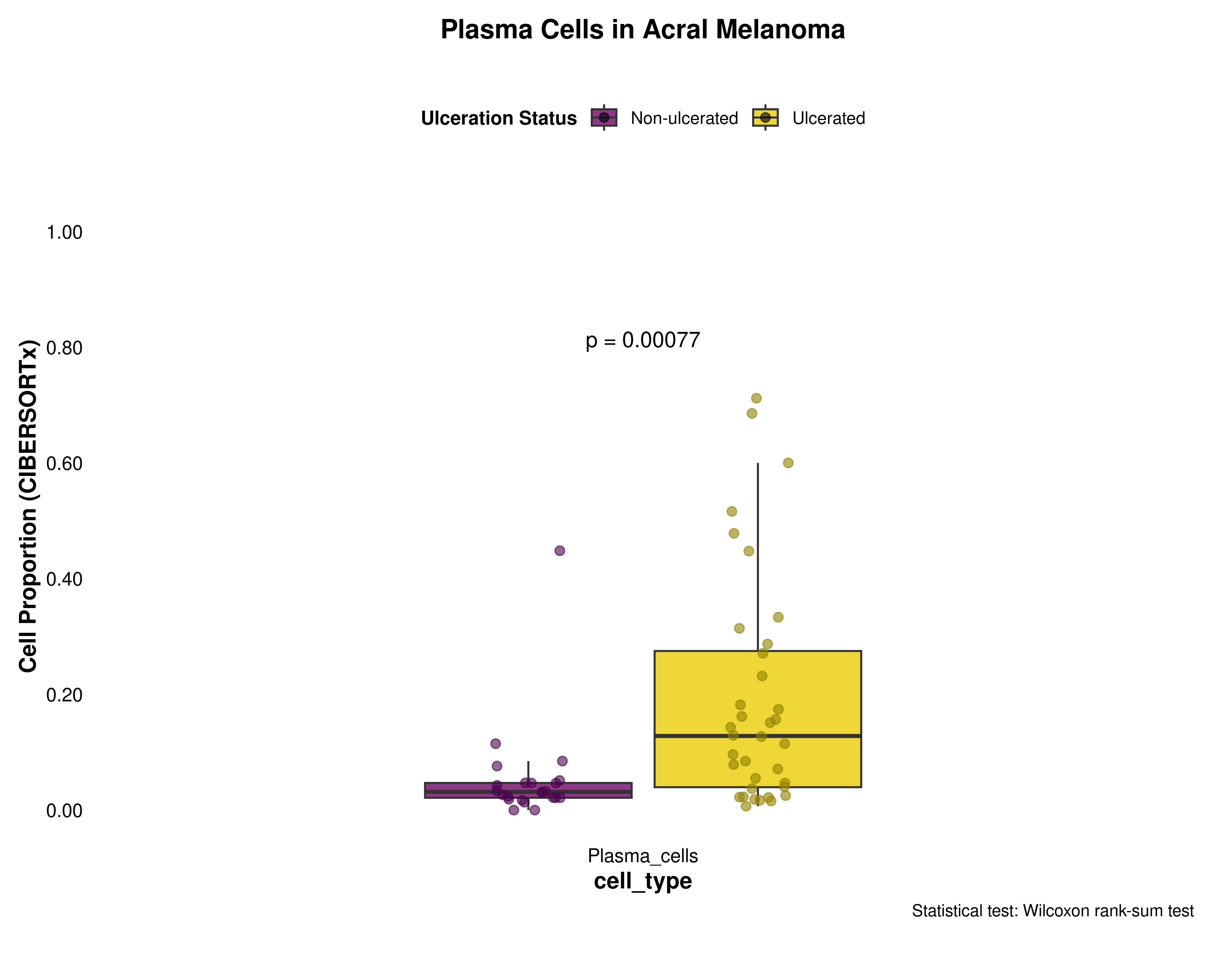

Plasma Cells

plasma_data <- prepare_cell_data(ciber_with_groups, "Plasma_cells")

plot_cell_boxplot(
  plasma_data,
  "Plasma Cells",
  y_max = 1,
  y_increment = 0.2
)

Version Author Date
60dfca2 Estef Vazquez 2025-05-05

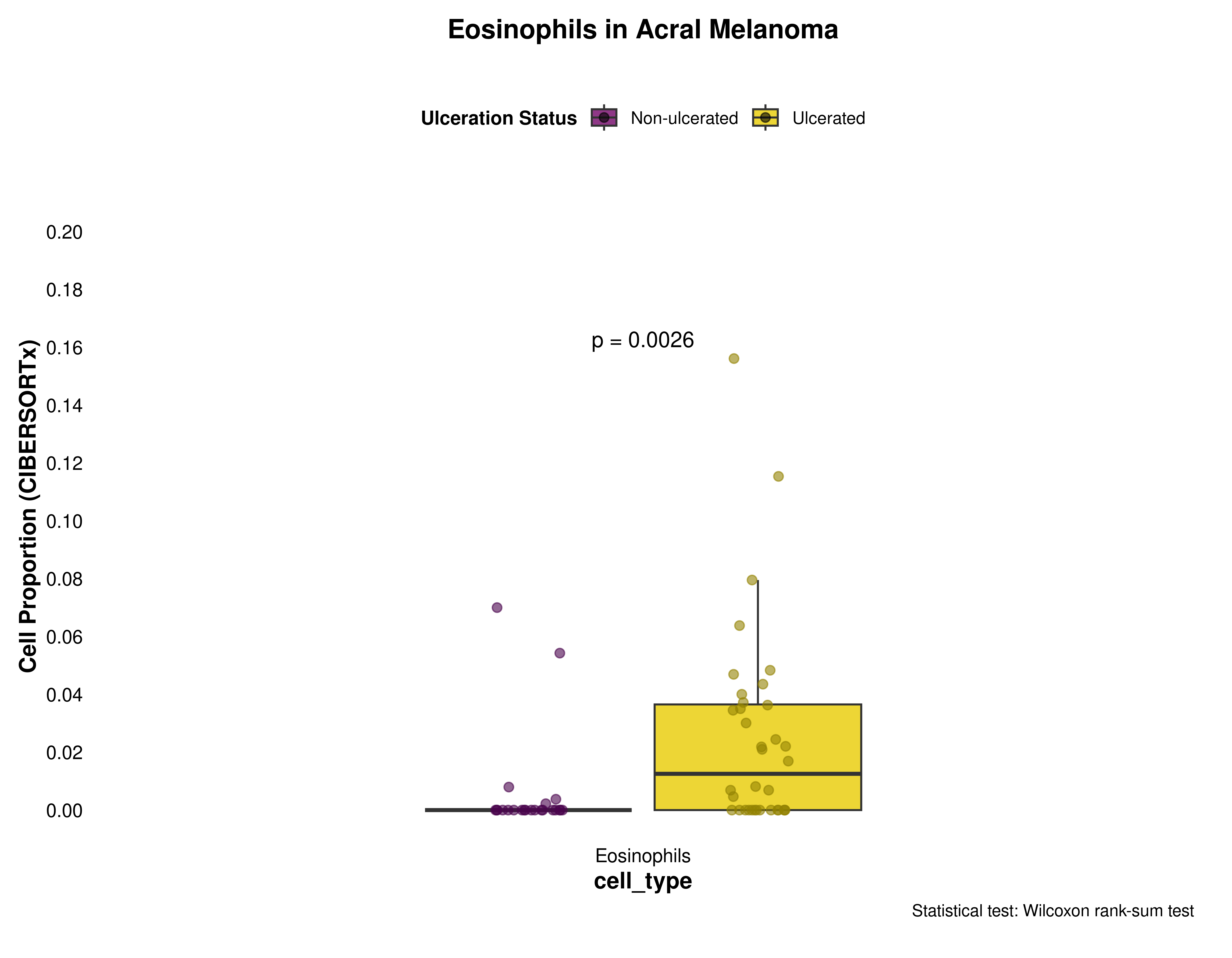

Eosinophils

eosinophils_data <- prepare_cell_data(ciber_with_groups, "Eosinophils")

plot_cell_boxplot(
  eosinophils_data,
  "Eosinophils",
  y_max = 0.2,
  y_increment = 0.02
)

Version Author Date
60dfca2 Estef Vazquez 2025-05-05

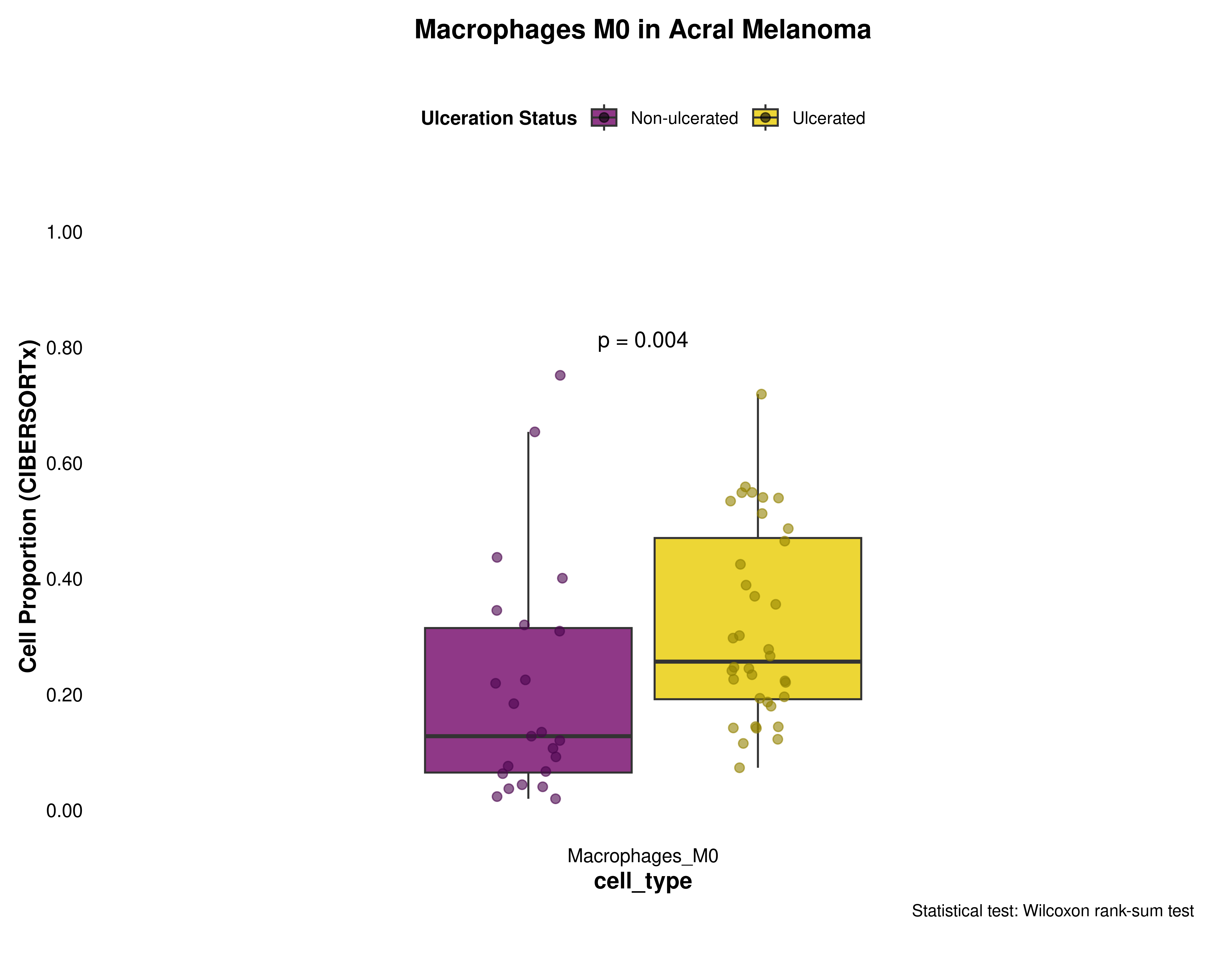

Macrophages M0

macrophages_m0_data <- prepare_cell_data(ciber_with_groups, "Macrophages_M0")

plot_cell_boxplot(
  macrophages_m0_data,
  "Macrophages M0",
  y_max = 1,
  y_increment = 0.2
)

Version Author Date
60dfca2 Estef Vazquez 2025-05-05
